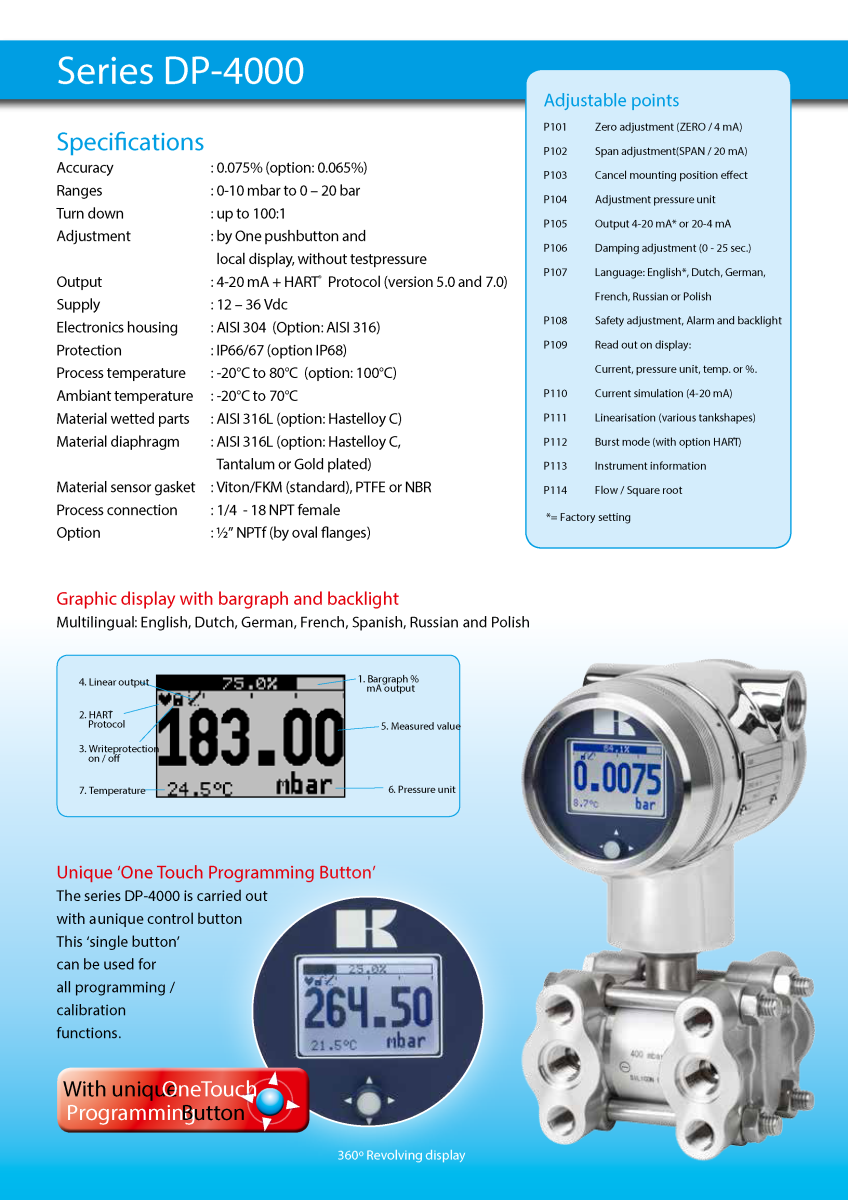

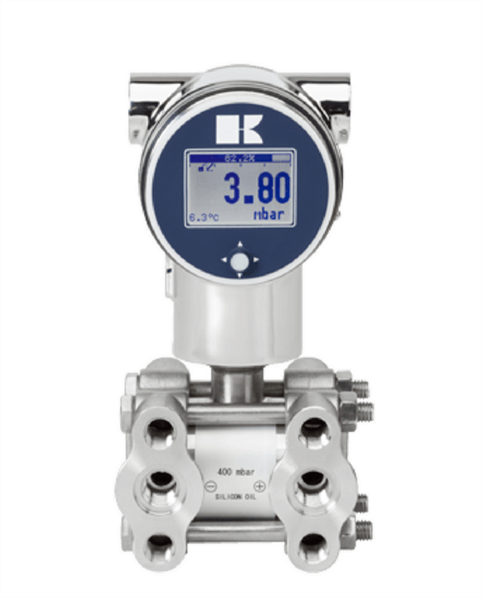

The DP-4000 is an advanced differential pressure transmitters with a compact and robust stainless steel housing. This microprocessor based transmitter can easily be programmed using the unique programming button and display.
Differential pressure measurement on gasses, steam and liquids in all industries. Level measurement in closed tanks. For this, the internal tank linearisation can be used. The DP-4000 can also be supplied with chemical seals. Square root function on board for flow measurement.
FEATURES
. All stainless steel housing
. Adjustable with unique programming button
. Graphic display with backlight
. Local indicator (option)
. Intrinsically safe ATEX and IECEx: Ex ia IIC T6 Ga
APPLICATION
Measure differential pressure on gases, steam and liquids in all industries based on differential pressure on Orifice plate, Venturi or Pitot tubes.
Note:
Unit prices & product information are general in nature, Specific information depends on actual needs & will be consulted and quoted after being provided by the Customer.
For more information on pricing, warranty, maintenance, and more, please contact us.
