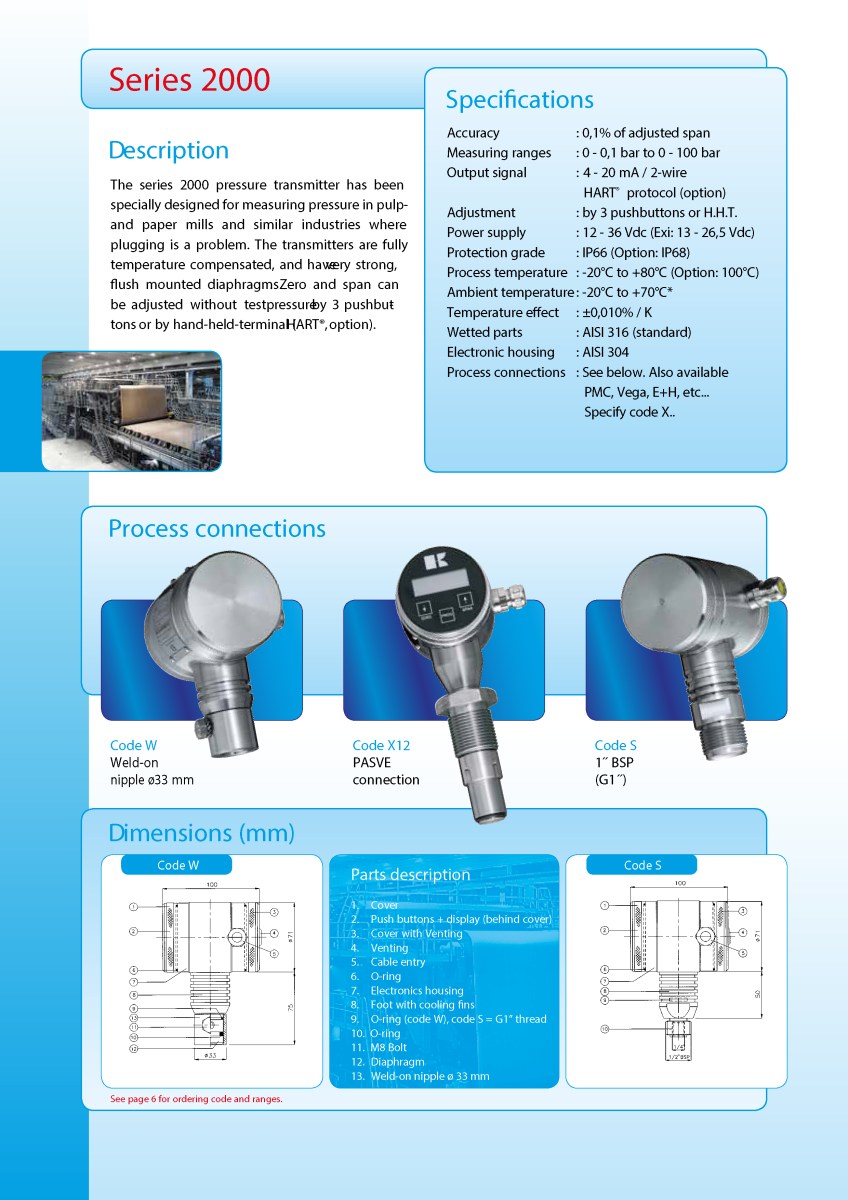

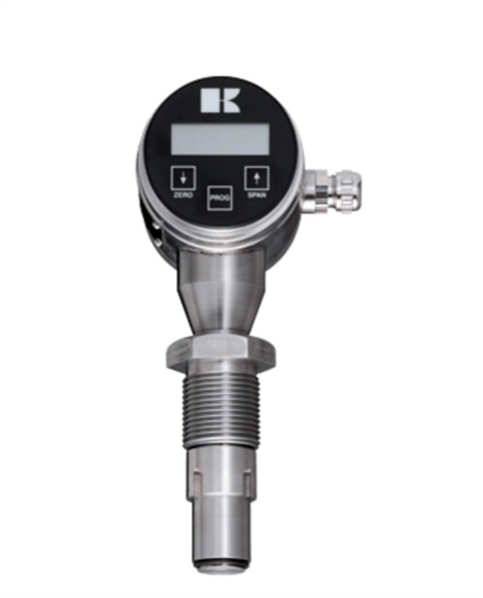

The all stainless series 2000 pressure transmitter has a flush diaphragm. Suitable for hydrostatic level measurement on liquids. This microprocessor based transmitter can easily be programmed using the three push buttons and display. Non hygienic level measurement of liquids where a flush diaphragm is needed. Examples are water, wastewater and oil. Because of the flush diaphragm very suitable for liquids which can cause clogging like pulp, paper and starch. For the pulp and paper industry specific process connections are available.
FEATURES
. All stainless steel housing
. Easy adjustable using 3 push buttons, without test pressure
. Strong flush diaphragm
. Active temperature compensation
. Tank linearisation
APPLICATION
Measure absolute and relative levels of gases and liquids. Flush diaphragms are well suited for liquids that can cause clogging such as pulp, paper and starch. A dedicated connection standard for the pulp and paper industry is available.
